Creating the worst possible visualisation

# load data from csv
df <- read_csv(here::here("data", "world_happiness_2015.csv"))

# rename columns
names(df)[1] <- "country"
names(df)[2] <- "region"
names(df)[3] <- "happiness_rank"
names(df)[4] <- "happiness_score"
names(df)[5] <- "std_error"
names(df)[6] <- "gdp_per_cap"
names(df)[7] <- "family"
names(df)[8] <- "life_exp"
names(df)[9] <- "freedom"
names(df)[10] <- "govnm_corruption"
names(df)[11] <- "generosity"
names(df)[12] <- "dystopia_residual"

# define colours vector
colors <- c('#996600', '#4d3300', '#446600', '#806000', '#994d00', '#5c5c3d','#999966','#808000','#223300','#999900')

# load background picture
sky <- png::readPNG(here::here("data", "images", "sky.png"))

# define credits
label <- "pls reach out to\nMARIE CORDES\nif u want beautiful\nplots like this 2"

# create plot
p <- ggplot(df,
            aes(x = happiness_score,
                color = region,
                size = gdp_per_cap)) +
  # first y axis with data on freedom
        geom_point(aes(y=freedom)) +
  # set color scale to the one defined before
        scale_color_manual(values=colors)+

  #     theme_bw()+
  # add theme elements
        theme(
          # define general text size and font
          text = element_text(size=16, family="Piedmont"),

          # design titles
          title = element_text(angle = 180,
                               color = "#ff3300",
                               size = 8,
                               family = "Zapfino"),
          # design axes titles
          axis.title.x = element_text(angle = 34,
                                      color = "#ff33cc",
                                      size=25,
                                      family = "Typo Draft Demo"),
          axis.title.y = element_text(angle = 90,
                                      color = "#00ff00",
                                      size=18,
                                      family = "BadaBoom BB"),
          # design axes text
          axis.text.x = element_text(angle = 77,
                                     color="#00ff00",
                                     size=15),
          axis.text.y = element_text(angle = 90,
                                     color="#ff33cc",
                                     size=15),
          # design axes lines and ticks
          axis.line = element_line(size = 1,
                                   colour = "#bf00ff",
                                   linetype = 1),
          axis.ticks = element_line(size = 1,
                                    color = "#00ff00") ,
          axis.ticks.length = unit(.5, "cm"),
          # design grid lines
          panel.grid.major = element_line(size = 0.15,
                                          linetype = 2,
                                          colour = "#ffff00"),
          panel.grid.minor = element_line(size = 1,
                                          linetype = 2,
                                          colour = "#ffff00"),
          # design plot and panel background
          plot.background = element_rect(fill = NA),
          panel.background = element_rect(fill = "#0000ff"),
          # design legend
          legend.position = "left",
          legend.title = element_text(size = 20),
          legend.background = element_rect(fill = "#ffff00")
          )+

  # add credits
        # add and design background rectangle
        geom_rect(aes(xmin = -1, xmax = 3,
                      ymin = 0.9, ymax = 1.1),
                  fill = "#ff33cc") +
        # add and design text
        geom_text(
          data = data.frame(
            x = 1, y = 1,
            label = label),
          aes(x = x, y = y,
              label = label),
          colour="#ffff00",
          family="BadaBoom BB",
          hjust = 0.5,
          lineheight = .8,
          inherit.aes = FALSE
          )+

  # add second y axis with data on generosity
        geom_point(aes(y = generosity,
                       shape = region))+
  # add regression lines with data on life_exp
        geom_line(aes(y = life_exp,
                      size = 0.1,
                      alpha = 0.5))+
  # add axes limits
        scale_x_continuous(limits = c(-1,8))+
        scale_y_continuous(limits = c(-0.1,1.1),
                           # add left y axis name
                           name = "FREDOM",
                           # add second axis + name
                           sec.axis = sec_axis(~.*2, name = "generositi")) +
  # add title and subtitle
        labs(title = "HAPPY PEOPLE",
             subtitle = "everyone is geneouurs, everyone si free, everybody happi")+
NULL

Next we add a pretty background picture and, then, want to have a look at the final plot:

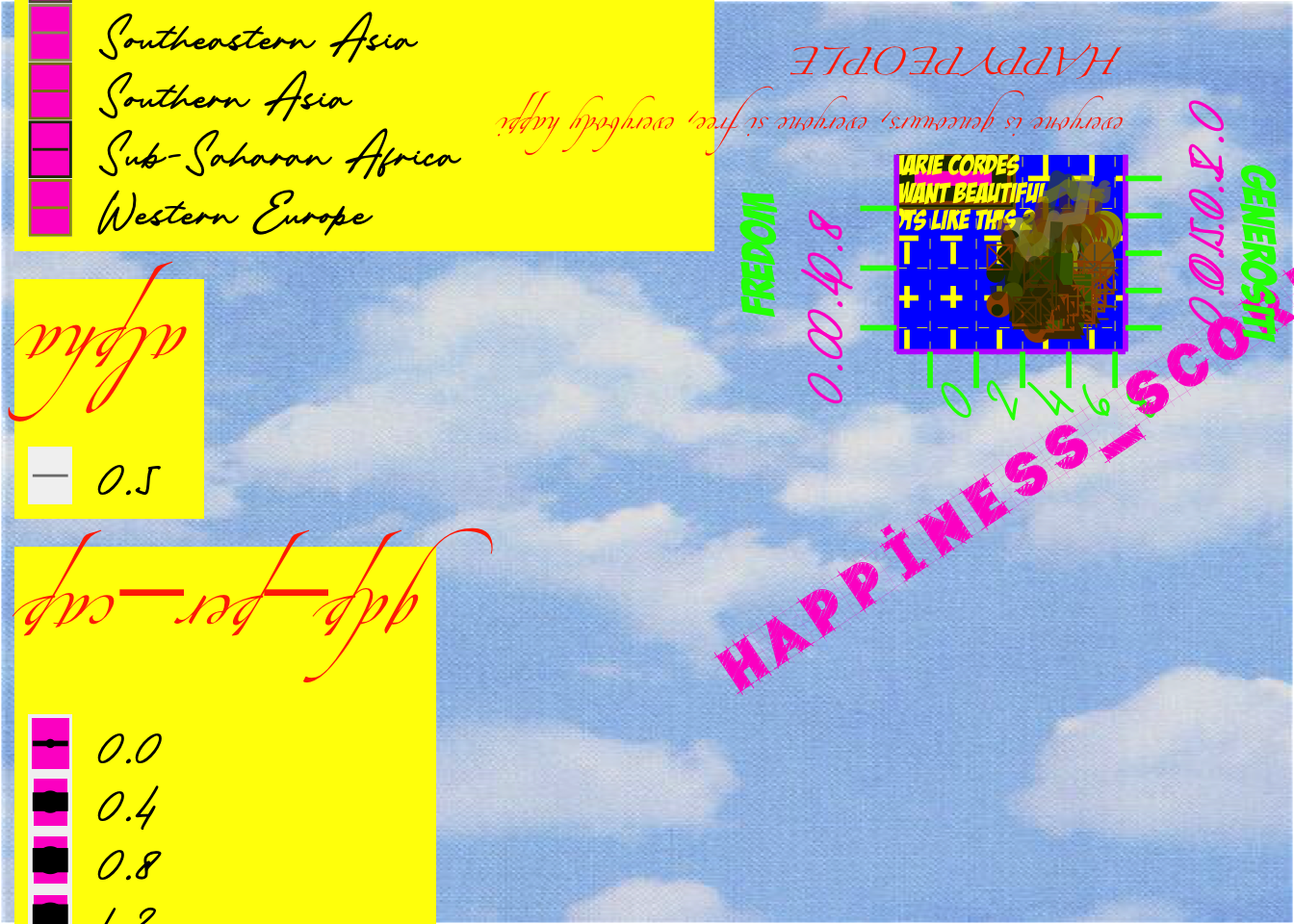

Unfortunately, simply printing it, scales the picture very weirdly (probably even worse (=better) though)…

# add background image
world_happiness_2015 <- grid.draw(gList(rasterGrob(sky,
                                                   width = unit(1,"npc"),
                                                   height = unit(1,"npc")),
                                        ggplotGrob(p)))

# save plot
world_happiness_2015 +
ggsave('worst_viz.png', height=28, width = 35, units = 'cm')

## integer(0)

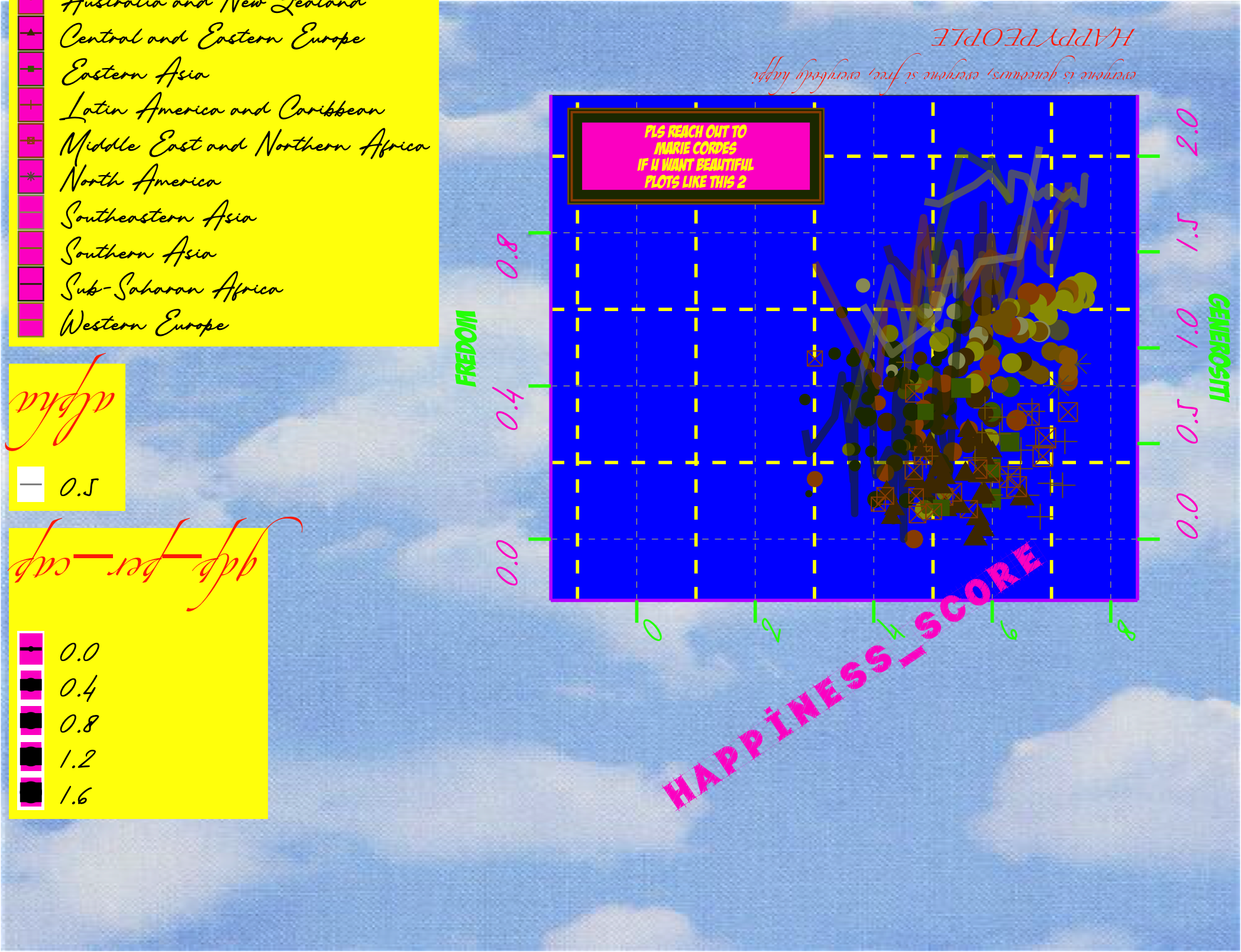

…therefore, we show it here, in all its glory!
